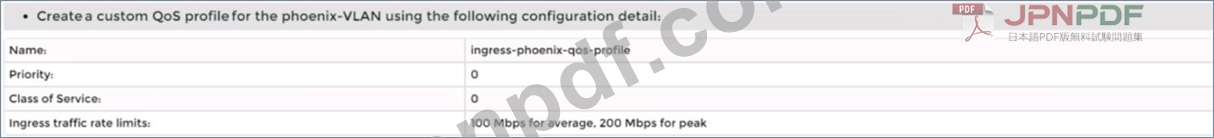

See the Explanation part of the Complete Solution and step by step instructions Explanation:
To configure traffic replication to the monitoring software for your Tampa web overlay segments with bi-directional traffic, you need to follow these steps:
Log in to the NSX Manager UI with admin credentials. The default URL is https://<nsx-manager-ip-address>.
Navigate to Networking > Segments and select the Tampa web overlay segment that you want to replicate the traffic from. For example, select Web-01 segment that you created in Task 2.
Click Port Mirroring > Set > Add Session and enter a name and an optional description for the port mirroring session. For example, enter Tampa-Web-Monitoring.
In the Direction section, select Bi-directional as the direction from the drop-down menu. This will replicate both ingress and egress traffic from the source to the destination.
In the Source section, click Set and select the VMs or logical ports that you want to use as the source of the traffic. For example, select Web-VM-01 and Web-VM-02 as the source VMs. Click Apply.
In the Destination section, click Set and select Remote L3 SPAN as the destination type from the drop-down menu. This will allow you to replicate the traffic to a remote destination outside of the NSX-T environment.
Enter the IP address of the destination device where you have installed the network monitoring software, such as 10.10.10.200.
Select an existing service profile from the drop-down menu or create a new one by clicking New Service Profile. A service profile defines the encapsulation type and other parameters for the replicated traffic.
Optionally, you can configure advanced settings such as TCP/IP stack, snap length, etc., for the port mirroring session.
Click Save and then Close to create the port mirroring session.
You have successfully configured traffic replication to the monitoring software for your Tampa web overlay segments with bi-directional traffic using NSX-T Manager UI.

See the Explanation part of the Complete Solution and step by step instructions Explanation:
Step-by-Step Guide
Creating Tags and Security Groups
First, log into the NSX-T Manager GUI and navigate to Inventory > Tags to create tags like "BOSTON-Web" for web servers and assign virtual machines such as BOSTON-web-01a and BOSTON-web-02 a. Repeat for "BOSTON-App" and "BOSTON-DB" with their respective VMs. Then, under Security > Groups, create security groups (e.g., "BOSTON Web-Servers") based on these tags to organize the network logically.
Excluding Virtual Machines
Next, go to Security > Distributed Firewall > Exclusion List and add the "core-A" virtual machine to exclude it from firewall rules, ensuring it operates without distributed firewall restrictions.
Defining Custom Services
Check Security > Services for existing services. If "TCP-9443" and "TCP-3051" are missing, create them by adding new services with the protocol TCP and respective port numbers to handle specific application traffic.
Setting Up the Policy and Rules
Create a new policy named "BOSTON-Web-Application" under Security > Distributed Firewall > Policies. Add rules within this policy:
Allow any source to "BOSTON Web-Servers" for HTTP/HTTPS.
Permit "BOSTON Web-Servers" to "BOSTON App-Servers" on TCP-9443.
Allow "BOSTON App-Servers" to "BOSTON DB-Servers" on TCP-3051. Finally, save and publish the policy to apply the changes.
This setup ensures secure, segmented traffic for the 3-tier web application, an unexpected detail being the need to manually create custom services for specific ports, enhancing flexibility.
Survey Note: Detailed Configuration of Micro-Segmentation Policy in VMware NSX-T Data Center 3.x This note provides a comprehensive guide for configuring a micro-segmentation policy for a 3-tier web application in VMware NSX-T Data Center 3.x, based on the task requirements. The process involves creating tags, security groups, excluding specific virtual machines, defining custom services, and setting up distributed firewall policies. The following sections detail each step, ensuring a thorough understanding for network administrators and security professionals.
Background and Context
Micro-segmentation in VMware NSX-T Data Center is a network security technique that logically divides the data center into distinct security segments, down to the individual workload level, using network virtualization technology. This is particularly crucial for a 3-tier web application, comprising web, application, and database layers, to control traffic and enhance security. The task specifies configuring this for a production environment, with notes indicating passwords are in user_readme.txt and no need to wait for configuration changes, as processing may take time.
Step-by-Step Configuration Process
Step 1: Creating Tags
Tags are used in NSX-T to categorize virtual machines, which can then be grouped for policy application. The process begins by logging into the NSX-T Manager GUI, accessible via a web browser with admin privileges. Navigate to Inventory > Tags, and click "Add Tag" to create the following:
Tag name: "BOSTON-Web", assigned to virtual machines BOSTON-web-01a and BOSTON-web-02a.
Tag name: "BOSTON-App", assigned to BOSTON-app-01a.
Tag name: "BOSTON-DB", assigned to BOSTON-db-01a.
This step ensures each tier of the application is tagged for easy identification and grouping, aligning with the attachment's configuration details.
Step 2: Creating Security Groups
Security groups in NSX-T are logical constructs that define membership based on criteria like tags, enabling targeted policy application. Under Security > Groups, click "Add Group" to create:
Group name: "BOSTON Web-Servers", with criteria set to include the "BOSTON-Web" tag.
Group name: "BOSTON App-Servers", with criteria set to include the "BOSTON-App" tag.
Group name: "BOSTON DB-Servers", with criteria set to include the "BOSTON-DB" tag.
This step organizes the network into manageable segments, facilitating the application of firewall rules to specific tiers.
Step 3: Excluding "core-A" VM from Distributed Firewall
The distributed firewall (DFW) in NSX-T monitors east-west traffic between virtual machines. However, certain VMs, like load balancers or firewalls, may need exclusion to operate without DFW restrictions. Navigate to Security > Distributed Firewall > Exclusion List, click "Add", select "Virtual Machine", and choose "core-A". Click "Save" to exclude it, ensuring it bypasses DFW rules, as per the task's requirement.
Step 4: Defining Custom Services
Firewall rules often require specific services, which may not be predefined. Under Security > Services, check for existing services "TCP-9443" and "TCP-3051". If absent, create them:
Click "Add Service", name it "TCP-9443", set protocol to TCP, and port to 9443.
Repeat for "TCP-3051", with protocol TCP and port 3051.
This step is crucial for handling application-specific traffic, such as the TCP ports mentioned in the policy type (TCP-9443, TCP-3051), ensuring the rules can reference these services.
Step 5: Creating the Policy and Rules
The final step involves creating a distributed firewall policy to enforce micro-segmentation. Navigate to Security > Distributed Firewall > Policies, click "Add Policy", and name it "BOSTON-Web-Application". Add a section, then create the following rules:
Rule Name: "Any-to-Web"
Source: Any (select "Any" or IP Address 0.0.0.0/0)
Destination: "BOSTON Web-Servers" (select the group)
Service: HTTP/HTTPS (predefined service)
Action: Allow
Rule Name: "Web-to-App"
Source: "BOSTON Web-Servers"
Destination: "BOSTON App-Servers"
Service: TCP-9443 (custom service created earlier)
Action: Allow
Rule Name: "App-to-DB"
Source: "BOSTON App-Servers"
Destination: "BOSTON DB-Servers"
Service: TCP-3051 (custom service created earlier)
Action: Allow
After defining the rules, click "Save" and "Publish" to apply the policy. This ensures traffic flows as required: any to web servers for HTTP/HTTPS, web to app on TCP-9443, and app to database on TCP-3051, while maintaining security through segmentation.
Additional Considerations
The task notes indicate no need to wait for configuration changes, as processing may take time, and steps are not dependent, suggesting immediate progression is acceptable. Passwords are in user_readme.txt, implying the user has necessary credentials. The policy order is critical, with rules processed top-to-bottom, and the attachment's "Type: TCP-9443, TCP-3051" likely describes the services used, not affecting the configuration steps directly.
Table: Summary of Configuration Details
Component
Details
Tags
BOSTON-Web (BOSTON-web-01a, BOSTON-web-02a), BOSTON-App (BOSTON-app-01a), BOSTON-DB (BOSTON-db-01a) Security Groups BOSTON Web-Servers (tag BOSTON-Web), BOSTON App-Servers (tag BOSTON-App), BOSTON DB-Servers (tag BOSTON-DB) DFW Exclusion List Virtual Machine: core-A Custom Services TCP-9443 (TCP, port 9443), TCP-3051 (TCP, port 3051) Policy Name BOSTON-Web-Application Firewall Rules Any-to-Web (Any to Web-Servers, HTTP/HTTPS, Allow), Web-to-App (Web to App-Servers, TCP-9443, Allow), App-to-DB (App to DB-Servers, TCP-3051, Allow) This table summarizes the configuration, aiding in verification and documentation.
Unexpected Detail
An unexpected aspect is the need to manually create custom services for TCP-9443 and TCP-3051, which may not be predefined, highlighting the flexibility of NSX-T for application-specific security policies.
Conclusion
This detailed process ensures a robust micro-segmentation policy, securing the 3-tier web application by controlling traffic between tiers and excluding specific VMs from DFW, aligning with best practices for network security in VMware NSX-T Data Center 3.x.
