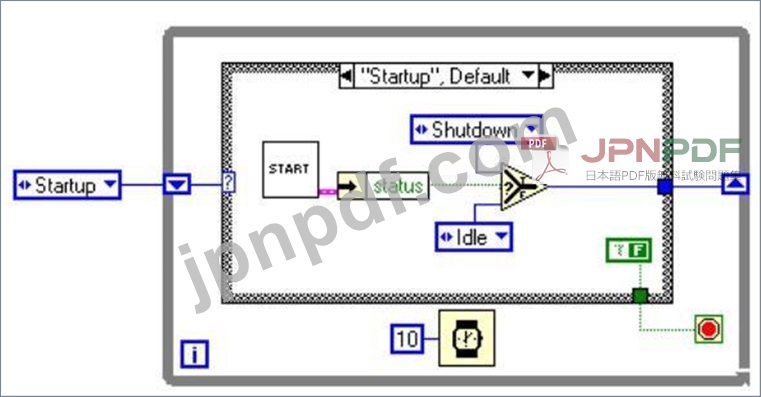

The following figure is an example of which common type of VI architecture?

• A.General VI
• B.Multiple Case Structure VI
• C.Parallel Loop VI
• D.State Machine VI

Clicking on the _________ button allows you to bypass a node in the Block Diagram without single- stepping through the node.

• A.Step Through
• B.Step Out
• C.Step Into
• D.Step Over

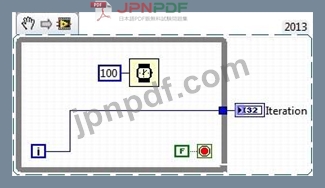

Which of the following statements is TRUE about the following code segment?

• A.The loop will execute once and the indicator Iteration will have a value of zero.
• B.The loop will execute once and the indicator Iteration will have value of one.
• C.The loop will not execute and the indicator Iteration will have a value of zero.
• D.The loop will execute infinitely and the program will have to be aborted.

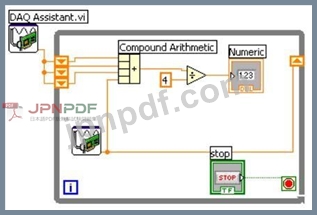

Which of the following accurately describes the output that results from execution of the following loop?

• A.A running average of all measurements will be displayed.
• B.An average of the last four measurements will be displayed.
• C.None of the above
• D.The last three values from the DAQ Assistant will be displayed.

You can use all of the following data types as inputs to the case selector terminal except:

• A.Enumerated type values
• B.Integers
• C.Doubles
• D.Strings
