A new deployment area is planned with three 5.4 GHz sites. Each site will have a full cluster of six APs. Each AP is expected to average 5 Mbps downlink and 2 Mbps uplink loads. Three backhaul links are planned in a chain configuration (Network Operations
Center (NOC) to Site A, Site A to Site B, Site B to Site C). What is the minimum aggregate throughput required for the link from the NOC to Site A?

• A.42 Mbps
• B.84 Mbps
• C.90 Mpbs
• D.126 Mpbs
• E.30 Mbps

A customer is connecting three local retail outlet sites to their main office. Retail Sites A and B will each need 10 Mbps connections. Site C will need a 25 Mbps connection. The customer requires a wireless backhaul solution in a RING configuration for redundancy.
What is the minimum capacity of each wireless link?

• A.90 Mbps
• B.20 Mbps
• C.25 Mbps
• D.10 Mbps
• E.45 Mbps

In System Design, a high level conceptual diagram should include which of the following
(select TWO)?

• A.Access point mounting bracket types
• B.Interconnection points to existing customer equipment
• C.Pictures of all potential sites
• D.Power requirements for each site
• E.All backhaul links showing capacity

Oceanside Information
The community of Oceanside is interested in obtaining a broadband access solution to all of the homes in the neighborhood. There is no fiber access in the neighborhood; however there is fiber near the entrance to the neighborhood on Highway A1A. The neighborhood association has requested that the proposal not have any tear-up of the existing roads.
The anticipated service area is approximately 1/2 x 1/3 miles.

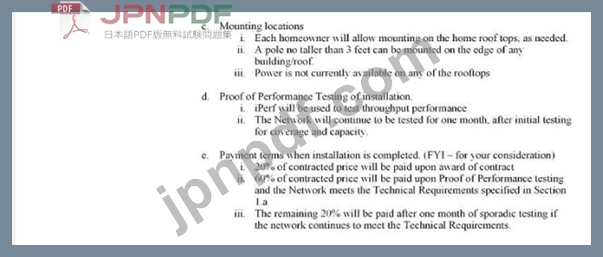

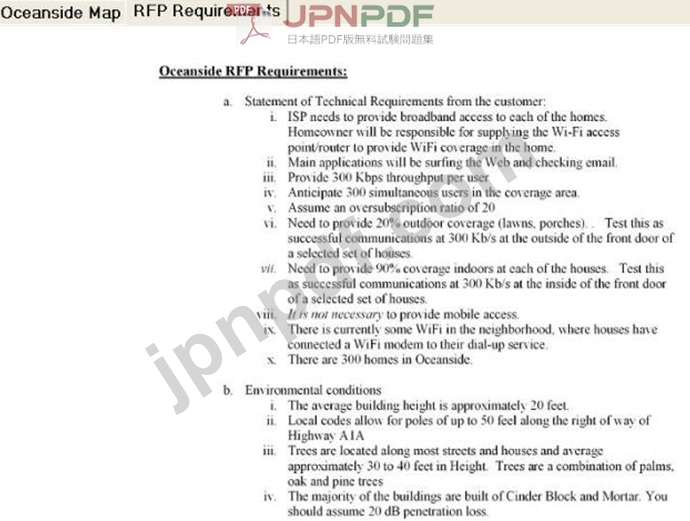

Click on the Exhibit button to access the "Oceanside Map" and the "RFP Requirements"



Which of the following should be included in your acceptance testing criteria based upon the information provided (select TWO)?

• A.Need to provide 90% coverage indoors at each of the houses. Test this as successful communications at 300 Kb/s at the inside of the front door of a selected set of houses.
• B.Need to provide 20% outdoor coverage (lawns, porches). Test this as successful communications at 300 Kb/s at the outside of the front door of a selected set of houses.
• C.Anticipate 300 simultaneous users in the coverage area
• D.The majority of the buildings are built of Cinder Block and Mortar. You should assume
  20 dB penetration loss.

A customer with an existing Motorola PMP deployment has installed the same type equipment in another country. The customer is concerned as the coverage pattern, using the same antennas, is significantly different at the new location. Given the options below, what is MOST likely the cause?

• A.Different regional regulatory standards have changed the allowable EIRP of the equipment
• B.Minimum radio power outputs for the new location are different
• C.Different climate conditions have effected the coverage range
• D.The new location requires different antenna patterns for the equipment
