Click the Exhibit.


Referring to the exhibit which two statements are true? (Choose two.)

• A.Untagged data packets entering interface ge-0/0/2 will be tagged with VLAN ID 20.
• B.Untagged data packets entering interface ge-0/0/3 will be tagged with VLAN ID 1.
• C.Untagged control packets entering interface ge-0/0/3 are passed without a VLAN tag.
• D.Untagged control packets entering interface ge-0/0/1 are not recognized.

Your enterprise network is providing layer 2 connectivity between remote-sites using Q-in-Q tunneling. A customer wants to ensure their connection through your network is also participating in their spanning free topology. In this scenario, which solution must be used?

• A.you must configure the Q in Q tunnel to use L2PT to tunnel STP packets
• B.you must configure spanning tree on the interfaces connected to the customers sites
• C.you must configure spanning tree to tunnel packets
• D.you must configure the same isolation ID on both sides of the tunnel

Click the Exhibit.

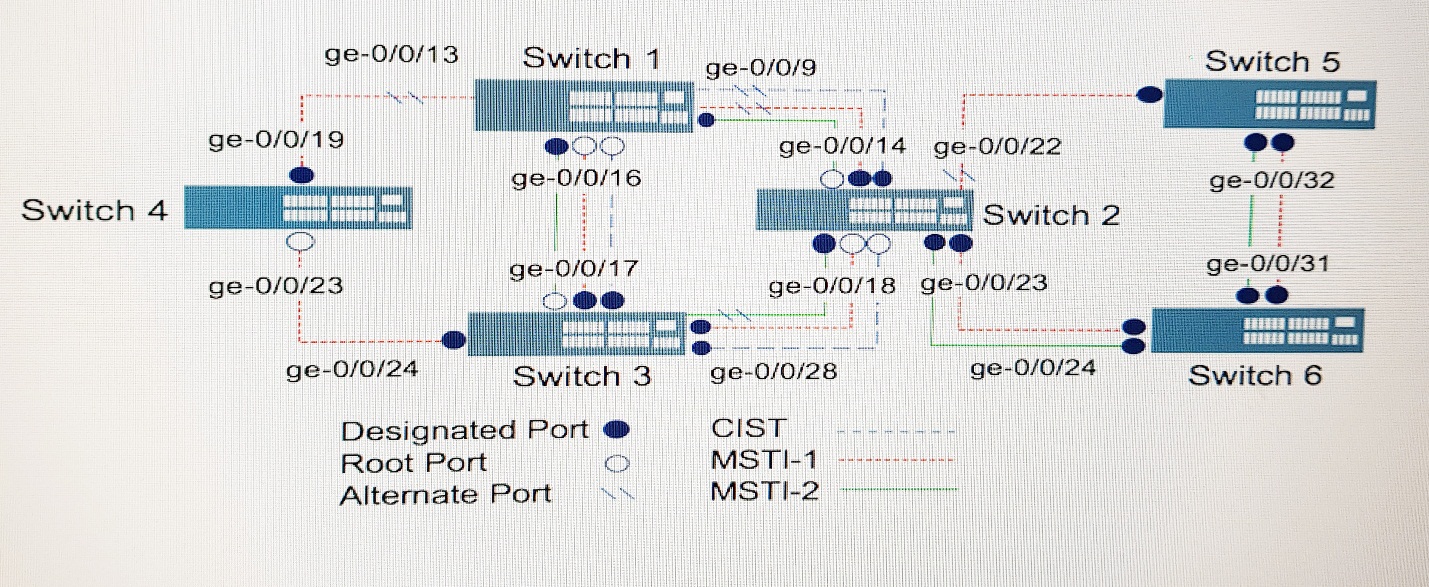

Referring to the exhibit, what is the minimum number of MSTP regions where the topology would be implemented?

• A.1
• B.0
• C.3
• D.2

Click the Exhibit.

Router1, in peer AS 65001, advertises routes to R2 using EBGP. R2 advertises the routes learned from R1 to R3 using IBGP. R3 is configured as a route reflector with routers R6 and R7 as clients.
Referring to the exhibit, to which routers will R3 advertise the BGP routes received from R2?

• A.R4, R5
• B.R6, R7
• C.R2, R4, R5, R6, R7
• D.R4, R5, R6, R7

You are configuring a scheduler map on an EX9200 Series device.
You want to ensure that traffic is dropped in a policing action once traffic exceeds the configured transit rate.
Which configuration parameter will meet this requirement?

• A.remainder
• B.rate-limit
• C.percent
• D.exact
