You are required to deploy a network service in between two customer sites without modifying IP addresses. You are using Contrail to manage your network services.
How would you accomplish this task?

• A.Deploy the service as type un-neterwork.
• B.Deploy the service as type transparent.
• C.Deploy the service with only a left interface.
• D.Deploy the service with only a right interface.

Which two statements are supported when building Heat templates? (Choose two.)

• A.JSON
• B.YAML
• C.YANG
• D.XML

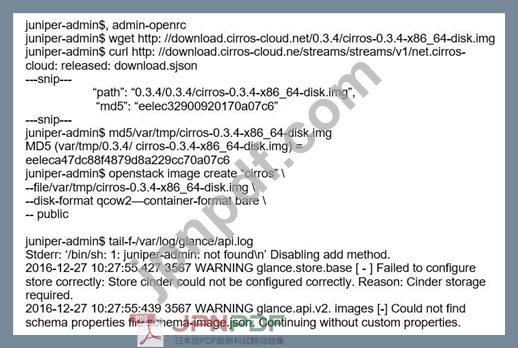

Click the exhibit button.

While completing the install of OpenStack, you upload the Cirros image the CLI to validate the Glance install. However, it times out after a short time. You review the logs located at
/var/log/glance/api.log.
Referring to the exhibit, which action will solve this problem?

• A.Update the GLANCE DBPASS in the keystone.conf file.
• B.Set the glance.api version to version 1 and retry the upload.
• C.Replace the schema image file with the correct name of the image.
• D.Get a new Cirros image; the current image is corrupted.

A developer is logged into OpenStack and is trying to bring up a recently assigned project but is rejected at the identify source.
Which log file should you review to identify this problem?

• A./var/log/keystone.log
• B.var/log/neutron.log
• C.var/log/apache2/horizon.log
• D.var/log/swift.log

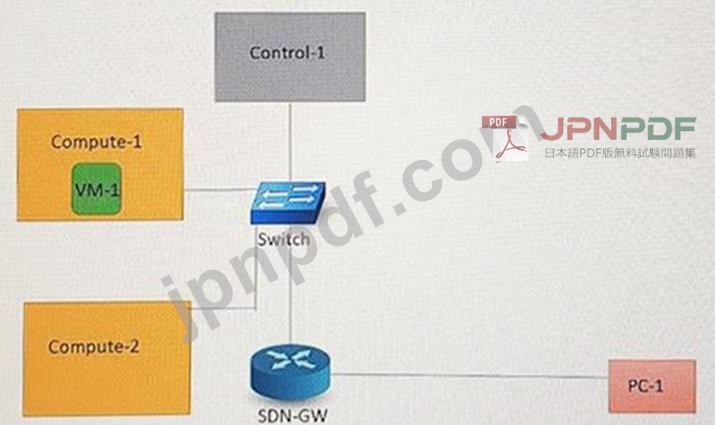

Refer to the exhibit.

Virtual machine VM-1 is spawned on a compute node Compute-1. VM-1 is not able to ping PC-1, which is located outside of the SDN cloud. You want to run packet captures to trace the packet initiated by VM-1 towards PC-1.
Referring to the exhibit, which three interfaces would you use to accomplish this task?
(Choose three.)

• A.The VM-1 tap interface
• B.The SDN-GW interface facing the SDN cloud
• C.The Control-1 data interface
• D.The Compute-1 data interface
• E.The Compute-2 data interface
