HPE7-A07 試験問題を無料オンラインアクセス

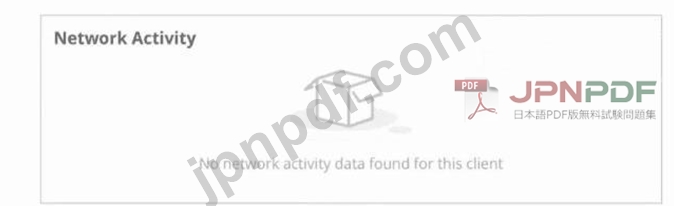

A customer is reviewing HPE Aruba Networking Central's Client Insights and notices that several wireless clients are not displaying flow attributes and network activity in the profile tab. This deployment is using AOS-10 mobility gateways.


What are the possible reasons why this data is not visible in HPE Aruba Networking Central? (Select two)

• A.The client's SSID is configured as mixed mode, and the clients experiencing the issue are bridged out of the APs
• B.The client's SSID is configured as bridged
• C.The client's SSID is configured as mixed mode, and the clients experiencing the issue are tunneled out of the APs
• D.The wireless client VLANs on the gateways are marked as trusted
• E.The wireless client VLANs on the gateways are marked as untrusted

A university owns a campus with several buildings segmented into east and west wings, which are L3 separated. The east wing has 1600 APs. and the west wing has 1200 Aps. Each wing has a single gateway cluster managed by HPE Aruba Networking Central. Each cluster contains one 7210 mobility gateway The gateways are configured with DHCP relay and route all client VLANs. A new business-critical faculty real- time application requires users to roam within wings but not across wings without disconnections or delay increments.
Which changes must the network administrator make lo successfully meet the requirement without performance degradation matching best practices? (Select two.)

• A.Add a single 7210 mobility gateway to each cluster.
• B.Run L2 for all SSIDs and permit the users' VLANs in the gateway's uplinks.
• C.Remove the DHCP relay from the gateways and enable the DHCP server instead
• D.Replace me 7210 mobility gateway in the east wing with a pair or 9012 mobility gateways
• E.Replace the 7210 mobility gateway in the west wing with a pair of 7030 mobility gateways.

The ACME company has an AOS-CX 6200 switch stack with an uplink oversubscription ratio of 9.6:1. They are considering adding two more nodes to the stack without adding any additional uplinks due to cabling constraints One of their architects has expressed concerns that their critical UDP traffic from both wired and bridged AP clients will encounter packet drops. They have already applied the following configuration:



Which strategy will complement this solution to achieve their objective?

• A.edge mark critical UDP Traffic with CSS
• B.edge mark critical UDP traffic with AF42
• C.edge mark lower priority TCP traffic with AF12
• D.edge mark lower priority TCP traffic with AF11

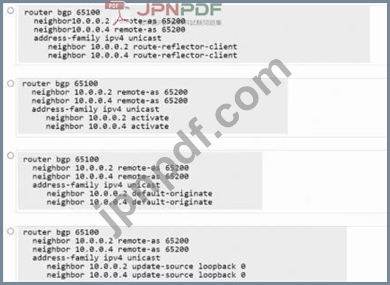

What should be defined on the Edge-1 to establish valid BGP routing between agg-sw1 and agg-sw2 using BGP protocol using the IP addresses above?

• A.OPTION D
• B.OPTION C
• C.OPTION A
• D.OPTION B

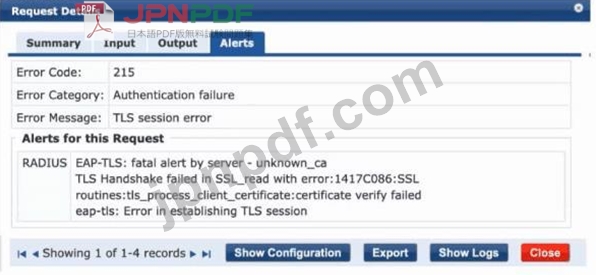

You configured a mixed-mode SSID with WPA3-Enterprise and EAP-TLS security. When you connect a client, HPE Aruba Networking ClearPass shows the following error:

What is needed to resolve this issue?

• A.Install a trusted server certificate from a well-known public CA on your ClearPass server
• B.Configure ClearPass to trust the client certificate
• C.Enable WPA3 transition mode on the SSID
• D.Configure the client to trust the ClearPass server certificate
