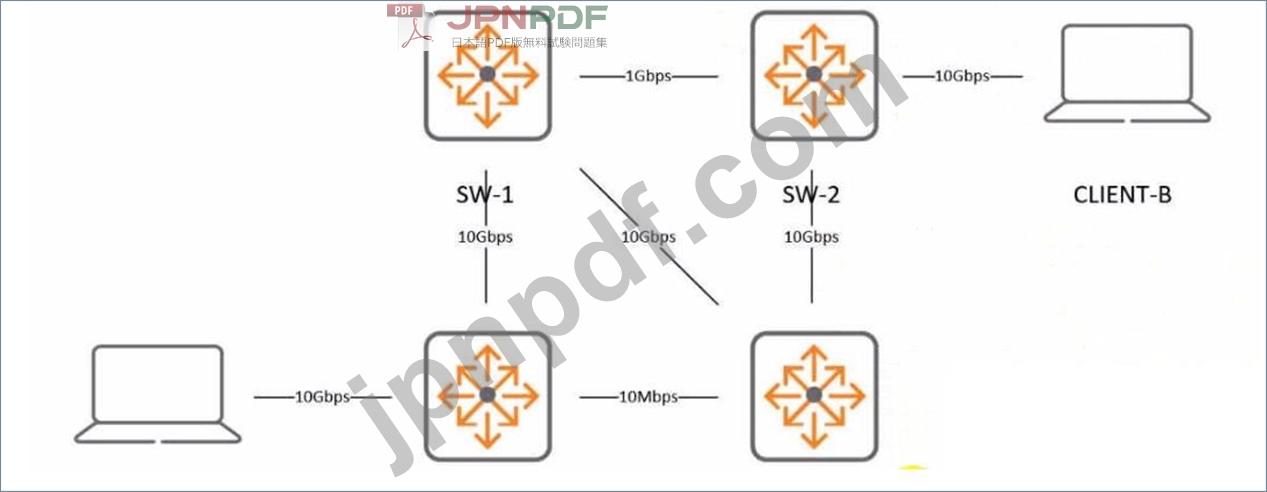

A customer would like to utilize some ArubaOS-CX 6300F switches to perform OSPF routing.

With the ports set up as routed ports, and default parameters for OSPF, which action is the simplest way to allow the fastest communication...

• A.Set the OSPF reference bandwidth to 10 or higher
• B.Set the OSPF cost parameters on every interface on every switch according to the Bandwidth or each link
• C.Utilize Equal-cost multi-path routing to aggregate more bandwidth on the WAN.
• D.No action is required

A customer with an ArubaOS-CX 6300M switch is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing troubleshooting it is determined that many of the local websites on the LAN that users are unable to reach are resolved to an invalid MAC address.
What are the minimum steps that should be performed to mitigate this condition? (Select two)

• A.Implement dhcpv4-snooping
• B.Enable 'arp inspection untrusted on the end-user physical pons
• C.Enable 'arp inspections on the end-user VLAN.
• D.Enable 'arp inspection' on the end-user physical ports
• E.Implement arp ACLs to define trusted MAC address to IP bindings

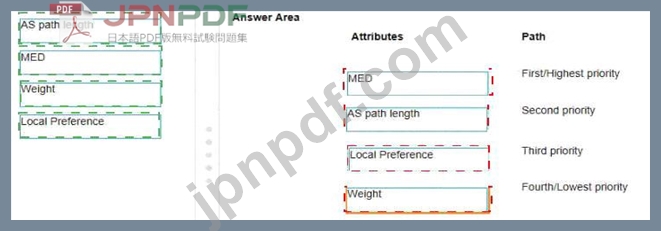

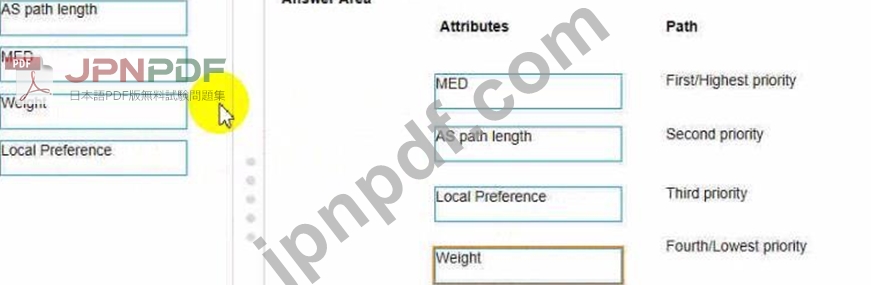

Match the BGP path selection criteria attributes (Each option may be used once, more than once, or not at all)

正解：

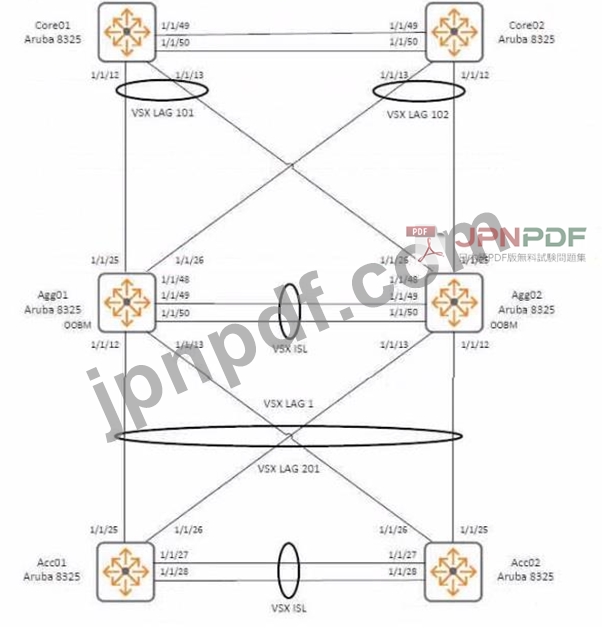

Refer to the exhibit.

You want to protect the aggregation layer if the VSXISL falls. Where should you place a VSX keepalive link?

• A.On VSX LAG 1
• B.On the OOBM ports of both aggregation switches
• C.On VSX LAG 101
• D.On a dedicated link created using port 1'1/48 of each aggregation switch

Which statement is true about NAE scripts'?

• A.The System Resource Monitor and Health Monitor a/e the only scripts installed on the system by default
• B.The Health Monitor is the only script installed on the system by default.
• C.No script is installed on the system by default.
• D.The System Resource Monitor is the only script Installed on the system by default.
