Refer to the exhibit.

A network engineer reviews the HA redundancy configuration of the Master and Local controllers shown in the exhibit. The engineer notices HA preemption is not enabled.
Which statement are correct? (Choose two.)

• A.The RAPs in the ap group of Cluster-A can failover to 10.10.10.1.2 and will start to fall back to
  10.10.10.1 after 10.10.10.1 is up for 30 seconds.
• B.The CAPs in the ap group of Cluster-A can failover to 10.10.10.1.2 and will start to fall back to
  10.10.10.1 after 10.10.10.1 is up for 30 seconds.
• C.The RAPs in the ap group of Cluster-A can failover to 10.10.10.1.3 and will start to fall back to
  10.10.10.1 after 10.10.10.1 is up for 30 seconds.
• D.The CAPs in the ap group of Cluster-A can failover to 10.10.10.1.3 and will not fallback the original controller after 10.10.10.1 is up.

Refer to the exhibit.

A network engineer configures AP termination redundancy as shown in the exhibit. Which type of redundancy is configured for the AP Groups on the controllers?

• A.High Availibility:Fast Failover is enabled for Local-1 AP-Group, and LMS-IP and Backup LMS-IP is configured for Local-2 AP-Group.
• B.LMS-IP and Backup LMS-IP is configured for Local-1 AP-Group, and High Availibity: Fast Failover is enabled Local-2 AP-Group.
• C.LMS-IP and Backup LMS-IP is configured for Local-1 and Local-2 AP-Groups
• D.High Availability Fast Failover is enabled for Local-1 and Local-2 AP-Groups.

An Aruba presales engineer works on a proof of concept (PoC) for a customer. As per the customer requirements, RRAPs should be deployed at all home offices of employees who work from home. Only traffic from the RAP in corporate subnets 172.16.10.0/24, 172.168.1.1/24, and 10.254.1.0/8 should reach the controller. The rest of the traffic should be processed by the local resources.
What is the recommended deployment design to meet these requirements?

• A.Deploy the RAP in split-tunnel mode, and uses a firewall policy to forward traffic either locally or to the corporate controller.
• B.Deploy the RAP in split-tunnel mode, and use a route map to forward traffic either locally or to the corporate controller.
• C.Deploy the RAP in split-tunnel mode, and use the split tunnel networks to forward traffic either locally or to the corporate controller.
• D.Deploy the RAP in CAP mode, and use a route map to forward traffic either locally or to the corporate controller.

A network engineer plans to deploy RAP. The company requires RAP to have redundancy so that it can failover to another controller if the primary controller fails.
Which RAP configuration should the engineer implement to meet these requirements?

• A.LMS and backup LMS
• B.High availability: Fast Failover
• C.Master and Local
• D.Master Standby

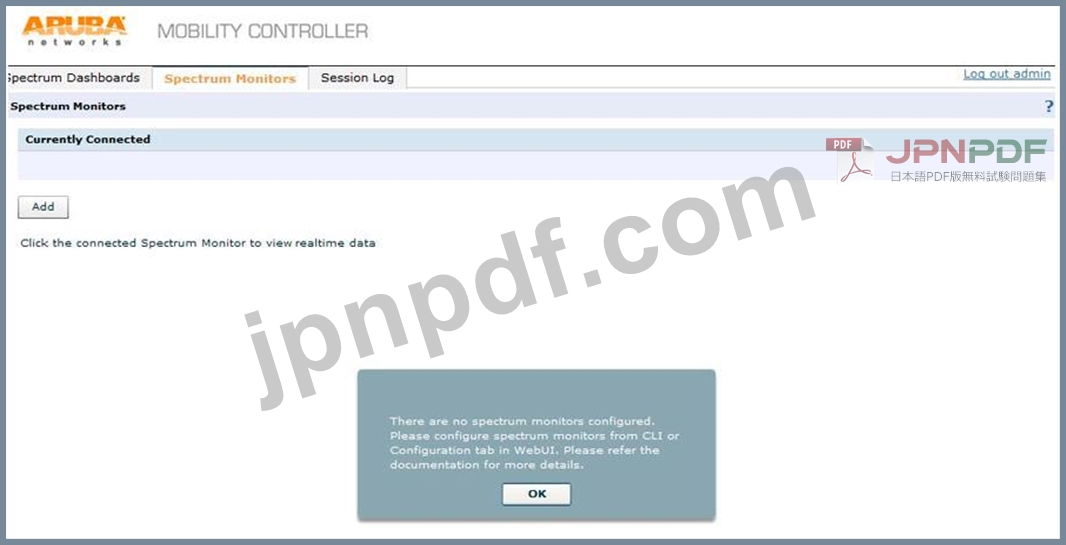

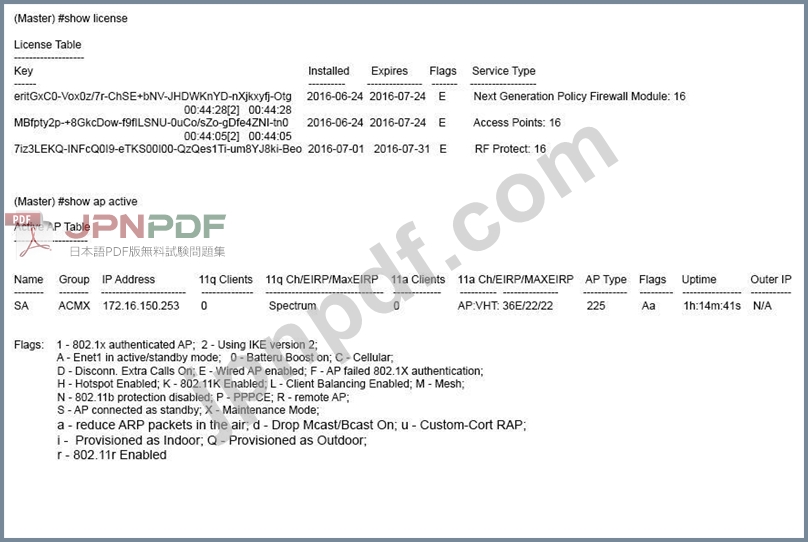

Refer to the exhibits on the tabs.
Exhibit 1

Exhibit 2

A network engineer needs to deploy a Spectrum Analyzer (SA) and then monitor the 2.4Ghz and 5Ghz spectrum. As per the requirement, the engineer is able to convent some APs into SA temporarily, but when the engineer monitors the spectrum through the controller there are issues.
Based on the information shown in the exhibits, what is the issue?

• A.The engineer cannot the a radio due to improper licensing.
• B.The engineer needs to put the a radio also in spectrum mode before it can be added.
• C.The engineer cannot add the a radio in spectrum mode because this mode only supports the g radio.
• D.The engineer needs to disconnect the g radio in the current configuration and then connect the a radio.
