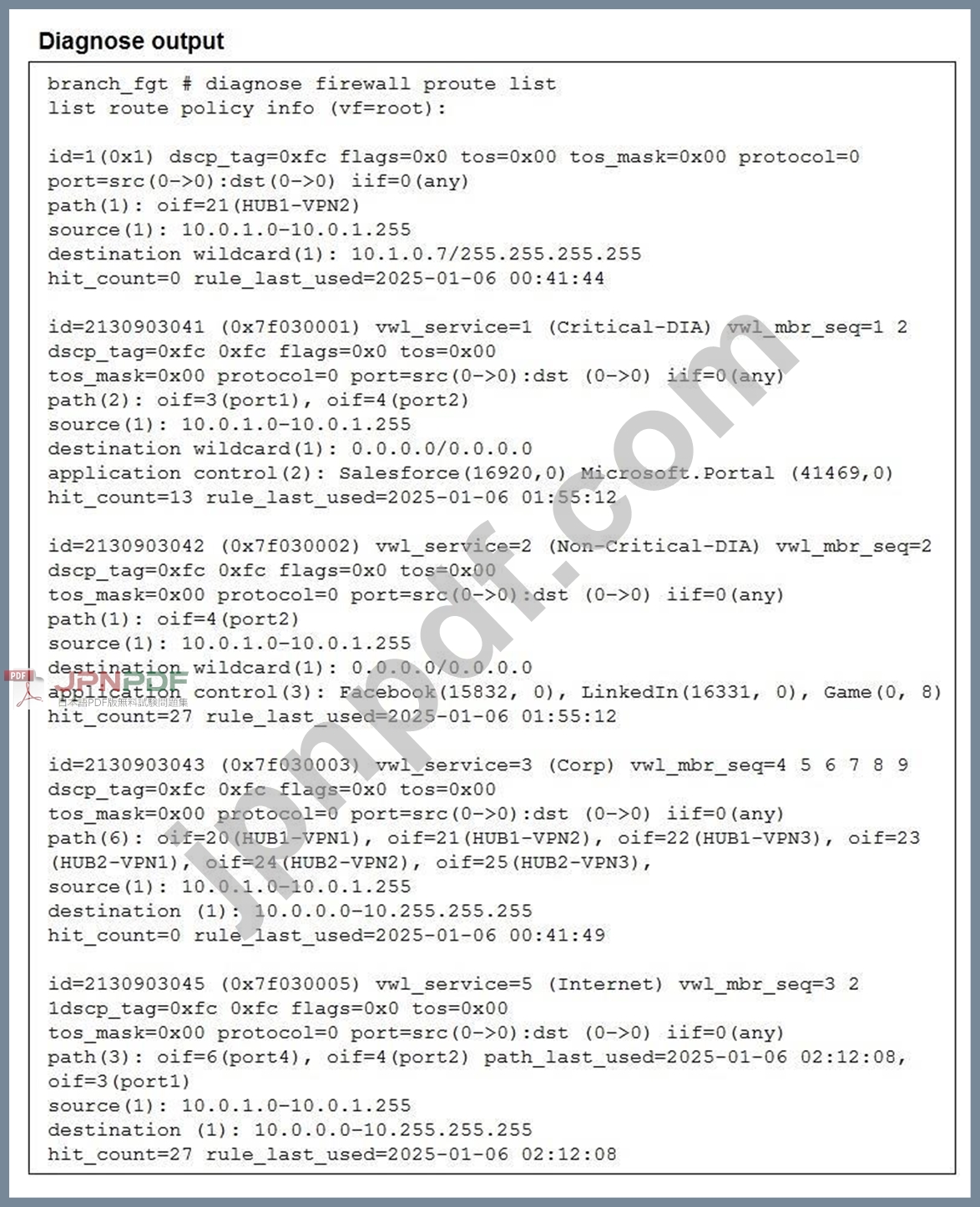

Refer to the exhibits. You connect to a device behind a branch FortiGate device and initiate a ping test. The device is part of the LAN subnet and its IP address is 10.0.1.101.
Based on the exhibits, which interface uses branch 1_fgt to steer the test traffic?

• A.port4
• B.port1
• C.port2
• D.HUB1-VPN1

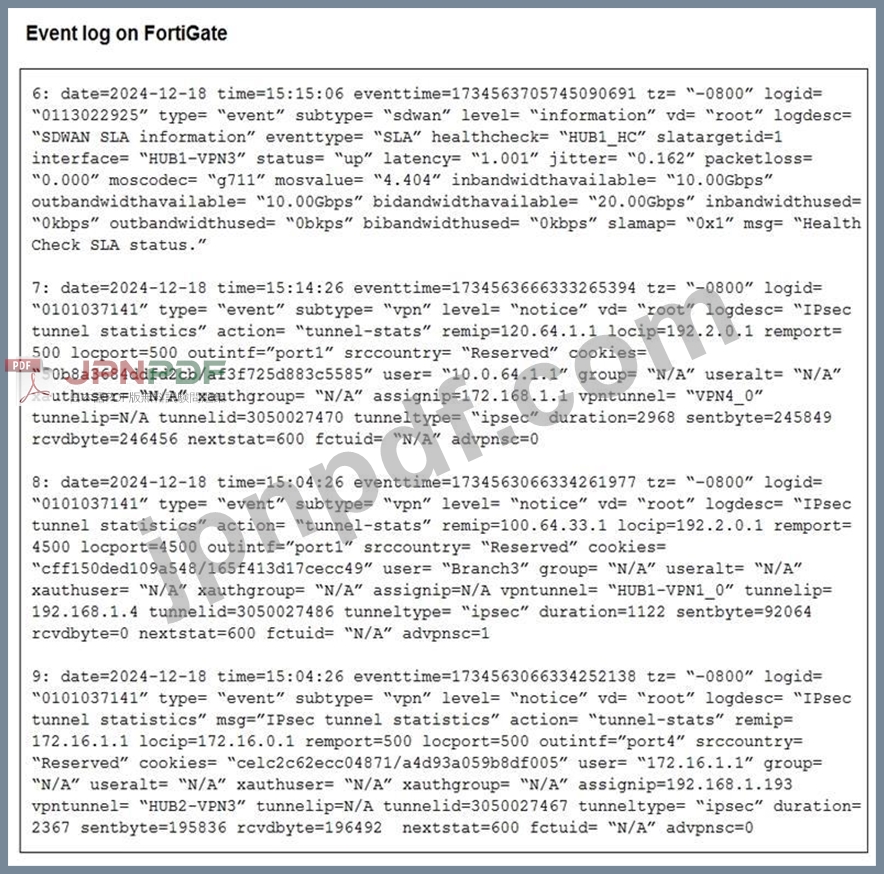

Refer to the exhibit that shows event logs on FortiGate. Based on the output shown in the exhibit, what can you say about the tunnels on this device?

• A.The VPN tunnel HUB1-VPN1_0 is a shortcut tunnel.
• B.The device steers voice traffic through the VPN tunnel HUB1-VPN3.
• C.The master tunnel HU82-VPN3 cannot accept ADVPN shortcuts.
• D.There is one shortcut tunnel built from master tunnel VPN4.

SD-WAN interacts with many other FortiGate features. Some of them are required to allow SD- WAN to steer the traffic.
Which three configuration elements that you must configure before FortiGate can steer traffic according to SD-WAN rules? (Choose three.)

• A.Firewall policies
• B.Interfaces
• C.Traffic shaping
• D.Routing
• E.Security profiles

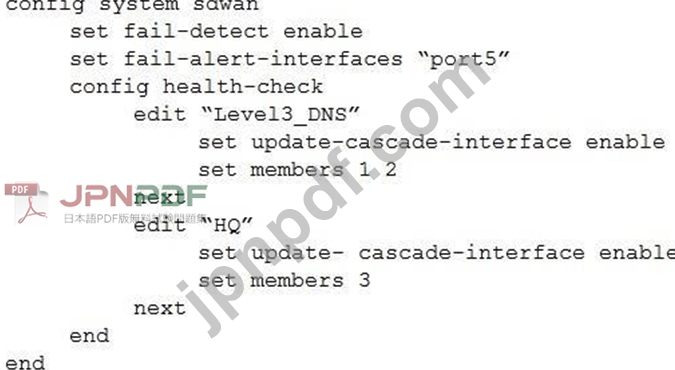

Refer to the exhibit. Which action will FortiGate take if it detects SD-WAN members as dead?

• A.FortiGate brings down port5 after it detects all SD-WAN members as dead.
• B.FortiGate fails over to the secondary device after it detects port5 as dead.
• C.FoftiGate bounces port5 after it detects all SD-WAN members as dead.
• D.FortiGate sends alert messages through poft5 when it detects all SD-WAN members as dead.

An SD-WAN member is no longer used to steer SD-WAN traffic. The administrator updated the SD-WAN configuration and deleted the unused member. After the configuration update, users report that some destinations are unreachable. You confirm that the affected flow does not match an SD-WAN rule.
What could be a possible cause of the traffic interruption?

• A.FortiGate can remove some static routes associated with an interface when the member is removed from SD-WAN.
• B.FortiGate removes the layer 3 settings for interfaces that are removed from the SD-WAN configuration.
• C.FortiGate administratively brings down interfaces when they are removed from the SD-WAN configuration.
• D.FortiGate, with SD-WAN enabled, cannot route traffic through interfaces that are not SD-WAN members.
