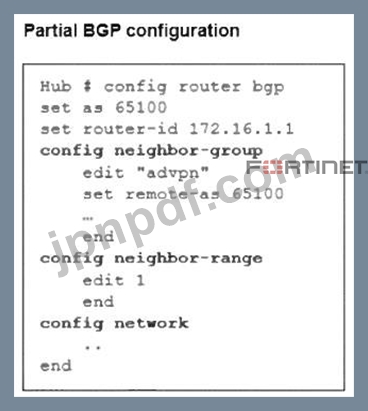

In the given ADVPN (Auto-Discovery VPN) topology, BGP is being used to dynamically establish routes between spokes. The neighbor-range configuration is crucial for simplifying BGP peer setup by automatically assigning neighbors based on their IP range.
set neighbor-group advpn
# Theneighbor-groupparameter is used to apply pre-defined settings (such as AS number) to dynamically discovered BGP neighbors.
# Theadvpnneighbor-group is already defined in the configuration, and assigning it to the neighbor-range ensures consistent BGP settings for all spoke neighbors.
set prefix 172.16.1.0 255.255.255.0
# This command allowsdynamic BGP peer discoveryby defining a range of potential neighbor IPs (172.16.1.1 - 172.16.1.255).
# Sinceeach spoke has a unique /32 IPwithin this subnet, this ensures that any spoke within the172.16.1.0/24 range can automatically establish a BGP session with the hub.

Theset tcp-mss-senderandset tcp-mss-receivercommands in afirewall policyallow an administrator to adjust theMaximum Segment Size (MSS)of TCP packets.
This setting controls thelargest payload sizethat a device can handle in a singleTCP segment, ensuring that packets do not exceed the allowed MTU (Maximum Transmission Unit) along the network path.
#set tcp-mss-senderadjusts the MSS value foroutgoing TCP traffic.
#set tcp-mss-receiveradjusts the MSS value forincoming TCP traffic.
This helps prevent issues withfragmentationandMTU mismatches, improving network performance and avoiding retransmissions.

The diagnose vpn tunnel list name Hub2Spoke1 command output provides key information about the offloading status of an IPsec VPN tunnel to the Network Processing Unit (NPU).
# npu_flag=20:
# This flag indicates that both inbound and outbound IPsec Security Associations (SAs) have been offloaded to the NPU, meaning the VPN traffic is processed in hardware instead of the CPU.
# npu_rgwy=10.10.2.2 and npu_lgwy=10.10.1.1:
# These IPs represent the remote gateway (rgwy) and local gateway (lgwy), confirming that the tunnel is successfully offloaded.
# npu_selid=1:
# This value means the session selector for the NPU offloaded SA is active.
Since both inbound and outbound SAs are offloaded, the administrator can conclude that the FortiGate NPU is handling IPsec encryption and decryption efficiently, reducing CPU load and improving VPN performance.

VXLAN (Virtual Extensible LAN)is an overlay network technology that extends Layer 2 networks over Layer 3 infrastructure. When VXLAN is used extensively on FortiGate, hardware acceleration is crucial for maintaining performance.
#NP7 (Network Processor 7)is Fortinet's latest network processor designed to accelerate high-performance networking features, including:
#VXLAN encapsulation/decapsulation
#IPsec VPN offloading
#Firewall policy enforcement
#Advanced threat protection at wire speed
NP7 significantlyreduces latency and improves throughputwhen handling VXLAN traffic, making it the best choice for large-scale VXLAN deployments.

When FortiGate is operating inproxy modewithfull SSL inspection enabled, it inspects encrypted HTTPS traffic by default onport 443. However, some websites may usenon-standard HTTPS ports(such as 8443), which FortiGate does not inspect unless explicitly configured.
To ensure that FortiGate inspects HTTPS traffic onport 8443, administrators mustmanually add port 8443in theProtocol Port Mappingsection of theSSL/SSH Inspection Profile. This allows FortiGate to treat HTTPS traffic on port 8443 the same as traffic on port 443, enabling proper inspection and enforcement of FortiGuard category-based web filtering.
