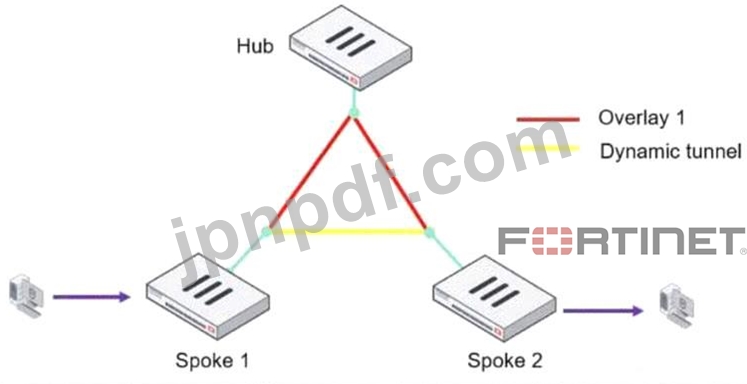

In anADVPN (Auto-Discovery VPN) network, adynamic VPN tunnelis establishedon-demandbetween spokes to optimize traffic flow and reduce latency.
Process:
1.Traffic Initiation:
A client behindSpoke-1sends traffic to a device behindSpoke-2.

The traffic initially flows through thehub, following the pre-established overlay tunnel.

2.Hub Detection:
Thehubdetects that Spoke-1 is communicating with Spoke-2 and determines that adirect shortcut tunnel between the spokes can optimize the connection.
3.Shortcut Offer:
Thehub sends a "Shortcut Offer"message to Spoke-1, informing it that a directdynamic tunnelto Spoke-2 is possible.

4.Tunnel Establishment:
Spoke-1 and Spoke-2 then negotiate and establish a directIPsec tunnelfor communication.

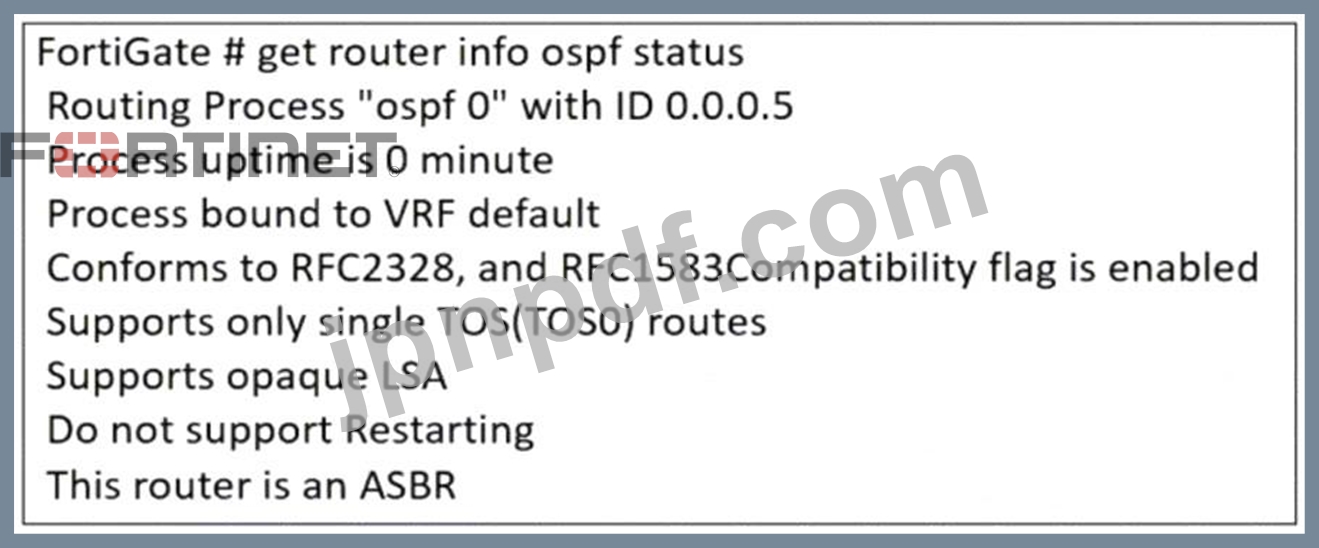

From theOSPF status output, the key information is:
#"This router is an ASBR"# This means the FortiGate is acting as anAutonomous System Boundary Router (ASBR).
# AnASBRis responsible for injectingexternal routing informationinto OSPF from another routing protocol (such as BGP, static routes, or connected networks).

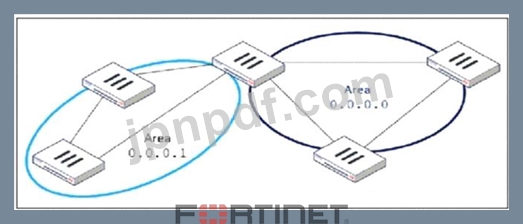

TheOSPF database optimizationis necessary to reduce unnecessary routing information and improve network performance. In the given topology,Area 0.0.0.1is a non-backbone area connected toArea 0.0.0.0 (the backbone area)through anArea Border Router (ABR).
To optimize OSPF in this scenario, configuringArea 0.0.0.1 as a Stub Areawill:
#Reduce the size of the OSPF databaseby preventing external routes (from outside OSPF) from being injected into Area 0.0.0.1.
#Allow only intra-area and inter-area routes, meaning routers in Area 0.0.0.1 will rely on adefault route for external destinations.
#Improve convergence time and reduce router processing loadsince fewer LSAs (Link-State Advertisements) are exchanged.

False positives inIntrusion Prevention System (IPS)analysis can disrupt legitimate traffic and negatively impact user experience. To reduce false positives while maintaining security, administrators can:
#Use IPS profile extensions to fine-tune the settings based on the organization's environment.
#Select the correct operating system, protocol, and application typesto ensure that IPS signatures match the network's actual traffic patterns, reducing false positives.
#Customize signature selectionbased on the network's specific services, filtering out unnecessary or irrelevant signatures.

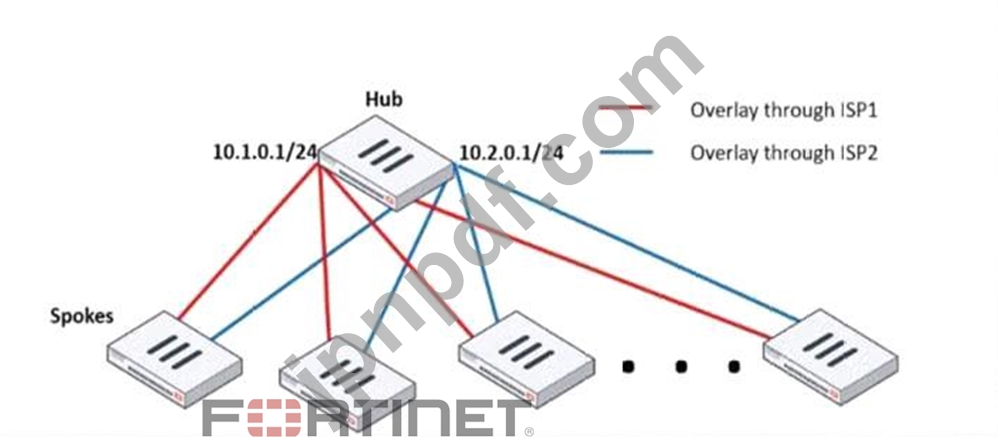

neighbor-group:
# This command is used to group multipleBGP neighborswith the same configuration, reducing redundant configuration.
# Instead of defining individual BGP settings for each spoke, the administrator can create aneighbor-group and apply the same policies, reducing manual work.
neighbor-range:
# This command allows the configuration ofa range of neighbor IPs dynamically, reducing the need to manually define each spoke neighbor.
# It automatically addsBGP neighborsthat match a given prefix, simplifying deployment.
