Which two options will help to solve the problem of a network that is suffering a broadcast storm?
(Choose two.)

• A.an access point
• B.a router
• C.a hub
• D.a Layer 3 switch
• E.a bridge

Which command can you enter in a network switch configuration so that learned mac addresses are saved in configuration as they connect ?

• A.Switch(confg-if)#Switch port-security maximum 10
• B.Switch(confg-if)#Switch mode access
• C.Switch(confg-if)#Switch port-security Mac-address sticky
• D.Switch(confg-if)#Switch port-security

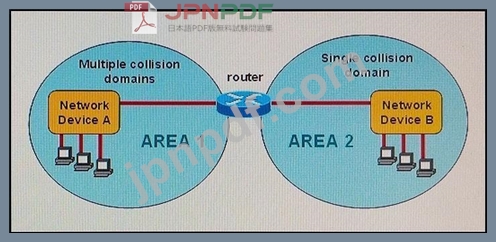

Refer to the exhibit. A network has been planned as shown. Which three statements accurately describe the areas and devices in the network plan? (Choose three.)

• A.Area 1 contains a Layer 2 device.
• B.Network Device A is a hub.
• C.Area 2 contains a Layer 2 device.
• D.Network Device A is a switch.
• E.Network DeviceB is a hub.
• F.Network Device B is a switch.

Which three values must you specify to resequence an IP access list? (Choose three )

• A.interface
• B.starting sequence number
• C.increment
• D.access list name
• E.ending
• F.dynamic access list number

Drag and Drop Question

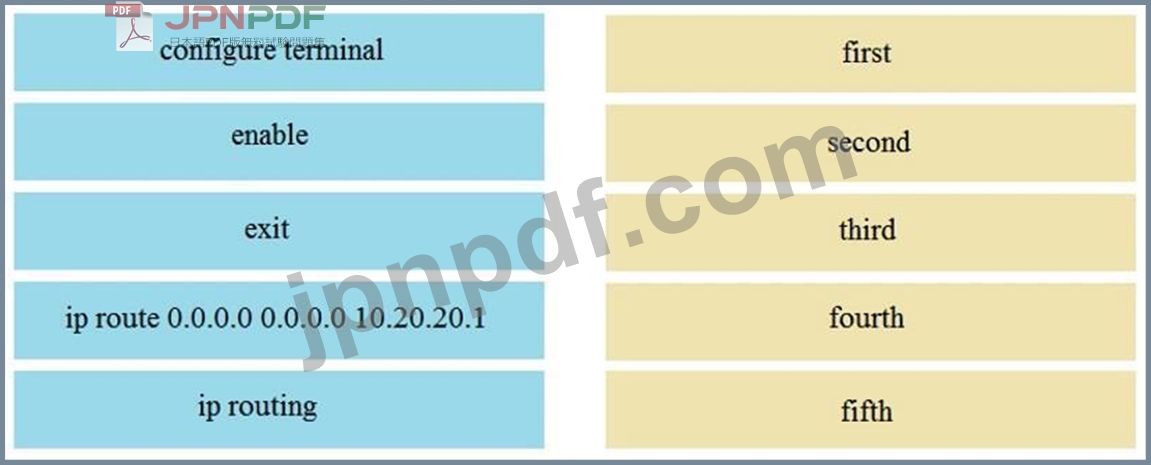

You are configuring a default route on a Cisco router. Drag and drop the commands from the left into the correct sequence on the right. Not all commands are used.

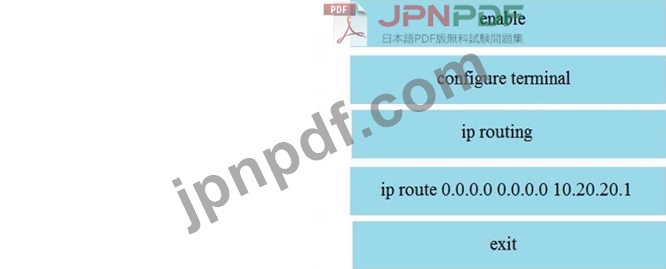

正解：
