Explanation:

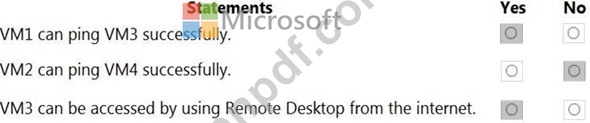

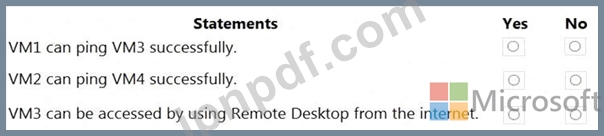

Box 1: Yes

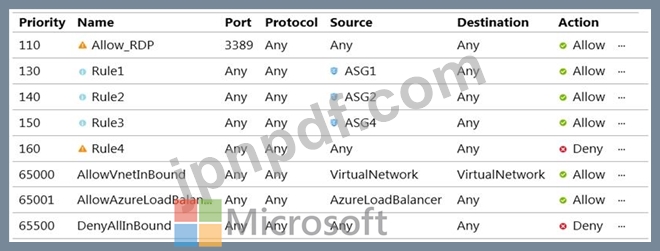

VM1 and VM3 are on peered VNets. The firewall rules with a source of ASG1 and ASG2 allow 'any' traffic on 'any' protocol so pings are allowed between VM1 and VM3.
Box 2: No
VM2 and VM4 are on separate VNets and the VNets are not peered. Therefore, the pings would have to go over the Internet. VM4 does have a public IP and the firewall allows pings. However, for VM2 to be able to ping VM4, VM2 would also need a public IP address. In Azure, pings don't go out through the default gateway as they would in a physical network. For an Azure VM to ping external IPs, the VM must have a public IP address assigned to it.
Box 3: Yes
VM3 has a public IP address and the firewall allows traffic on port 3389.

References:
https://docs.microsoft.com/en-us/azure/sql-database/sql-database-aad-authentication-configure

see the task answer with step by step below:
* Enable Web Application Firewall (WAF) for the application gateway. You can use the Azure portal, Azure PowerShell, or the Azure CLI to do this. You need to select a WAF policy and a WAF mode for the application gateway. You can choose a predefined policy or create a custom policy with your own rules and exclusions.
* Configure WAF policy settings. You can use the Azure portal, Azure PowerShell, or the Azure CLI to do this. You need to select the managed rulesets and rule groups that you want to enable or disable for the WAF policy. You can also configure custom rules to match specific patterns or conditions and take actions such as blocking or logging requests.
* Monitor WAF logs. You can use different types of logs in Azure to manage and troubleshoot the application gateway and the WAF policy. You can access some of these logs through the portal, such as metrics and health probes. You can also export the logs to Azure Storage, Event Hubs, or Log Analytics and view them in different tools, such as Azure Monitor, Excel, or Power BI.

Explanation:
Graphical user interface, text, application Description automatically generated
