Port 22 is used for SFTP (Secure File Transfer Protocol) and SCP (Secure Copy Protocol), which encrypt file transfers using SSH (Secure Shell). This ensures data is transmitted securely over the network.
*Why not the other options?
*Port 69 (B) - TFTP (Trivial File Transfer Protocol): Transfers files but is not secure (no encryption).
*Port 80 (C) - HTTP: Used for web traffic, not for file transfer.
*Port 3389 (D) - RDP (Remote Desktop Protocol): Used for remote desktop access, not file transfer.

Direct Connect refers to a dedicated network connection between an on-premises network and a cloud service provider (such as AWS Direct Connect). This link bypasses the public internet, providing a more reliable and higher-bandwidth connection. It may not inherently include encryption because it relies on the security measures of the dedicated physical connection itself. In contrast, other options like VPN typically involve encryption as they traverse the public internet.

See the solution in Explanation.
Explanation:
To validate routing between networks hosting Workstation A and File Server 2, follow these steps:
* Review Routing Tables:
* Check the routing tables of Router A, Router B, and Router C to identify any missing routes.
* Identify Missing Routes:
* Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.
* Add Static Routes:
* If a route is missing, add a static route to the relevant destination network via the correct interface.

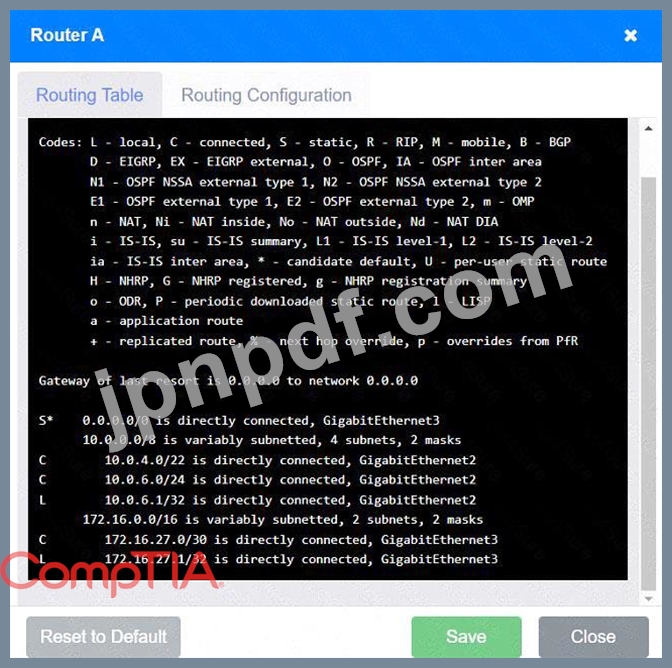

* Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet3
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.4.0/22 is directly connected, GigabitEthernet2
C 10.0.6.0/24 is directly connected, GigabitEthernet2
L 10.0.6.1/32 is directly connected, GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet3
L 172.16.27.1/32 is directly connected, GigabitEthernet3
* Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet1
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.0.0/22 is directly connected, GigabitEthernet1
L 10.0.0.1/32 is directly connected, GigabitEthernet1
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.5/32 is directly connected, GigabitEthernet1
* Routing Table:
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
S 10.0.0.0/22 [1/0] via GigabitEthernet1
S 10.0.4.0/22 [1/0] via GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet2
L 172.16.27.2/32 is directly connected, GigabitEthernet2
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.6/32 is directly connected, GigabitEthernet1

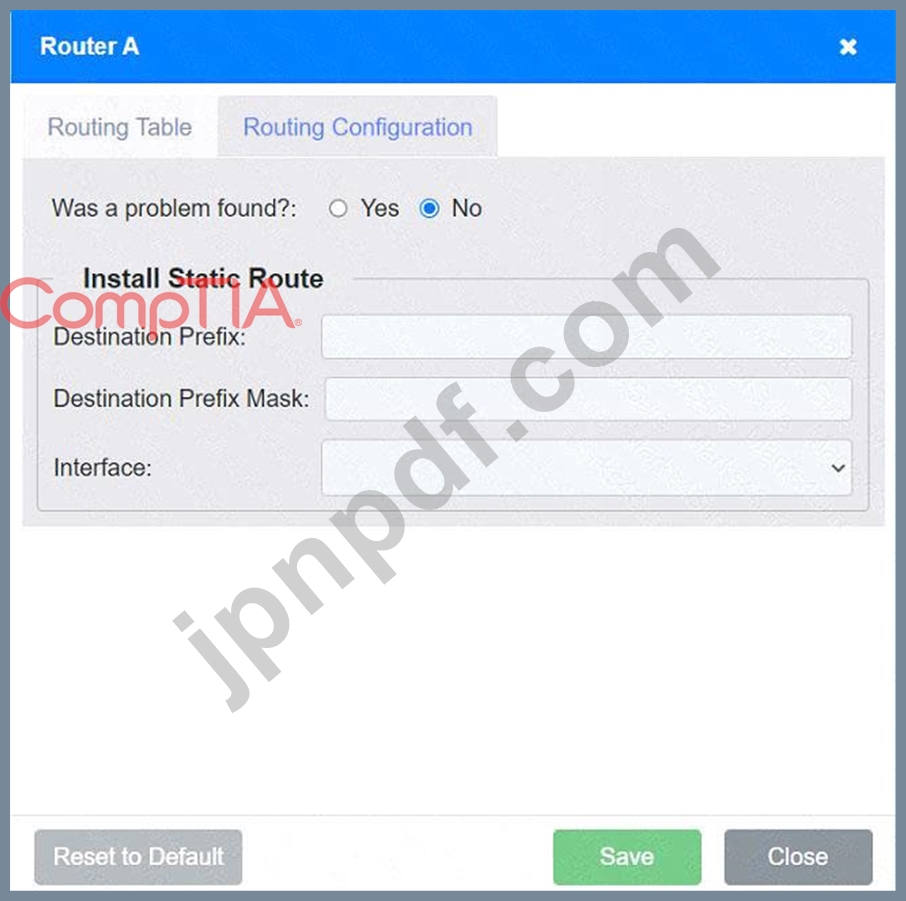

* Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet3

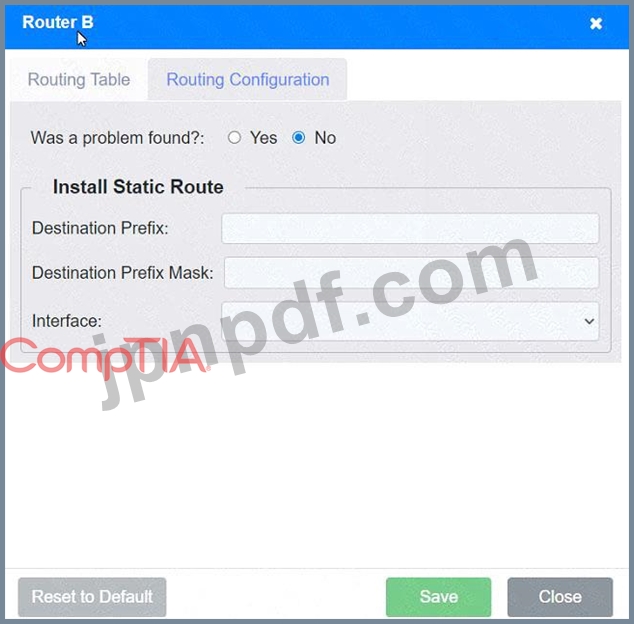

* Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):
Destination Prefix: 10.0.4.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1

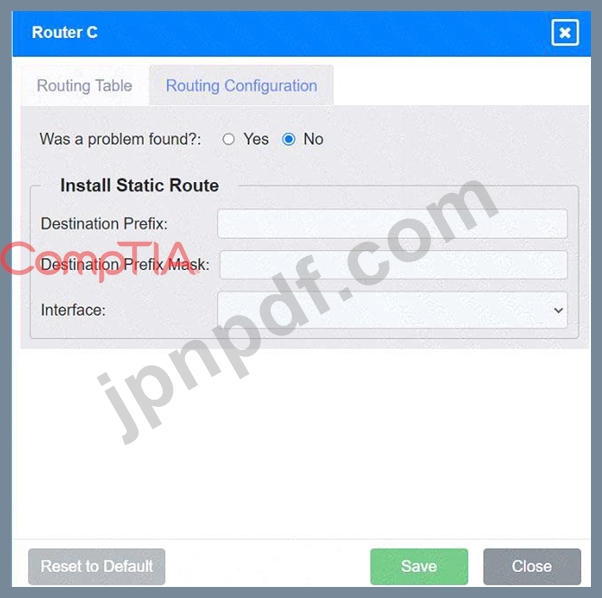

* Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):
Destination Prefix: 10.0.6.0
Destination Prefix Mask: 255.255.255.0
Interface: GigabitEthernet2
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Summary of Static Routes:
* Router A:
* ip route 10.0.0.0 255.255.252.0 GigabitEthernet3
* Router B:
* ip route 10.0.4.0 255.255.252.0 GigabitEthernet1
* Router C:
* ip route 10.0.6.0 255.255.255.0 GigabitEthernet2
* ip route 10.0.0.0 255.255.252.0 GigabitEthernet1
These configurations ensure that each router knows the correct paths to reach Workstation A and File Server
2, resolving the connectivity issue.

An access point (AP) provides users with an extended footprint that allows connections from multiple devices within a designated Wireless Local Area Network (WLAN).
* Router: Typically used to connect different networks, not specifically for extending wireless coverage.
* Switch: Used to connect devices within a wired network, not for providing wireless access.
* Access Point (AP): Extends wireless network coverage, allowing multiple wireless devices to connect to the network.
* Firewall: Primarily used for network security, controlling incoming and outgoing traffic based on security rules, not for providing wireless connectivity.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Explains the roles and functions of network appliances, including access points.
* Cisco Networking Academy: Provides training on deploying and managing wireless networks with access points.
* Network+ Certification All-in-One Exam Guide: Covers network devices and their roles in creating and managing networks.

Installing server equipment in a rack increases compute density by allowing multiple servers to be organized efficiently in a vertical configuration, saving space while housing more devices in a smaller footprint. This is critical for data centers and businesses with high hardware demands.
Simplified troubleshooting process (A): While racks can aid in organizing equipment, this is a secondary benefit, not the primary purpose.
Decreased power consumption (B): Rack installation does not directly reduce power usage; equipment power consumption remains the same.
Improved network performance (C): Racking servers does not inherently improve network performance; that depends on network configurations.
